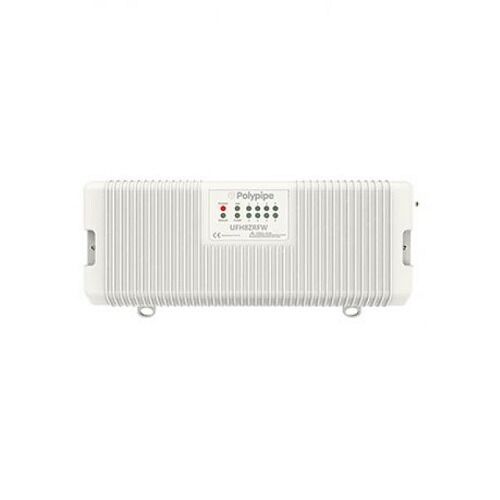

Polypipe 8 Zone Wiring Centre (Wireless) UFH8ZRFW

Polypipe 8 Zone Wiring Centre (Wireless) UFH8ZRFW.

The UFH8ZRFW can be used in conjunction with our wireless thermostats. The UFH8ZRFW provides central switching and is their ideally situated next to the underfloor heating manifold. Eight zones can be controlled as well as providing an output for hot water cylinder. On demand from any zone, a 230v output is provided to switch the relevant zone actuators, underfloor heating pump and valve. A volt free connection is supplied for the boiler, making it compatible with almost all types of boilers. Up to six actuators can be connected to each zone. A software option in our wireless thermostats allow you to configure which zones and underfloor heating and which are radiators. The UFHBSW can be paired to the UFH8ZRFW in order to offer a wireless boiler link.

These wiring centres allow connection of:

Heating main supply, UFH pump, zone valve, boiler enable

Option to add domestic hot water zone

Volt free boiler switching connection

Optional connection for radiator valve

230v actuators

Output indication

Pump delay enable
